Rigid Mounted Breakaway Coupling - Female - Body Size 1/2"
SKU
57026
Views: 0
Part No. 57026
Rigid Mounted Breakaway Coupling - Female - Body Size 1/2" - Male Thread Size M22 x 1.5
This series of ISO A female couplings are designed primarily for the agricultural industry and incorporate a push/pull design. The coupling is panel mounted using circlip grooves on the locking sleeve.
Body Size: 1/2”
Thread: M22 x 1.5
Thread Length: 12.0mm

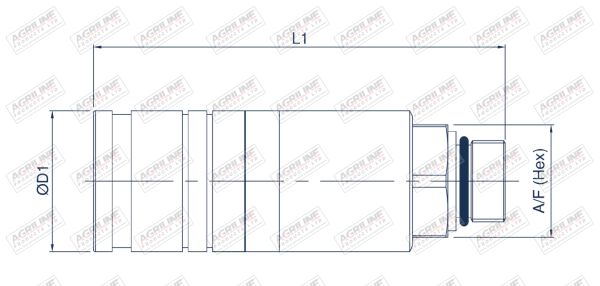

D1: 38.0mm / 1.5"
L1: 111.0mm / 4.37"
A/F: 32.0mm / 1.26"
APPLICATIONS
• Agricultural
• Construction
• Mobile
• General hydraulics
FEATURES
• Can be connected with standard ISO A 1/2” male couplings
• Can be connected with residual pressure in the line (male side only)
• Release mechanism protects coupling and hose from damage in event of accidental separating force
• Locking ball system allows quick connection
• Bidirectional flow
SPECIFICATIONS
• Operating temperatures -40°C (-40°F) to 106°C (223°F)
• Carbon steel with trivalent plating
• Fitted with NBR seals
• Conforms to ISO 7241 : 2014 A
PERFORMANCE CHARACTERISTICS
• Maximum Working Pressure (Coupled) - 300 bar (Flow in Litres Per Minute) - 4350 PSI (Flow in Gallons Per Minute)
• Burst Pressure (Coupled) - 1000 bar (Flow in Litres Per Minute) - 14500 PSI (Flow in Gallons Per Minute)
• Rated Flow - 45 bar (Flow in Litres Per Minute) – 12 PSI (Flow in Gallons Per Minute)
Suitable for Massey Ferguson.
Product Details
Rigid Mounted Breakaway Coupling - Female - Body Size 1/2"Fits Models
New Holland
T6000 SERIES
- T7050, T7040, T6060, T6050, T6070, T7030, T6020, T7060, T6010, T6030, T6040
T7000 SERIES
- T7040, T7030, T7060, T7050
TM SERIES
- TM155, TM135, TM140, TM190, TM115, TM125, TM130, TM175, TM120, TM150
TS SERIES
- TS100, TS110
TSA SERIES
- TS100A, TS115A, TS110A, TS135A, TS125A
Out of stock
